If you’re planning to upgrade your home’s energy efficiency, you’ve probably come across the term U‑value. It’s a key factor in insulation and heat loss, and it plays a bigger role in UK home renovations than many realise. Whether you’re planning a retrofit or a new build, understanding how U‑values work can help you make better choices and avoid costly mistakes.
In this guide, we’ll look at what U‑values mean, how external wall insulation helps improve them, and what to keep in mind when choosing insulation materials and thickness.
Content Page
- What Is a U‑Value?
- Why Do U‑Values Matter in UK Homes?
- What is the Difference Between U‑Value vs. R‑Value?
- UK Building Regulations and U‑Value Targets
- How External Wall Insulation Improves U‑Values
- How Are U‑Values Calculated and Tested?
What Is a U‑Value?
A U‑value shows how easily heat passes through parts of your home such as walls, roofs, windows or floors. The lower the number, the better your home holds onto warmth during winter and stays cooler in summer. If you’re considering insulating your home, focusing on the U‑value helps you understand how effective the upgrade will be in reducing heat loss and improving comfort.
How Is a U‑Value Measured?
U-values are measured in watts per square metre per degree Kelvin (W/m²·K). In simple terms, this figure tells you how much heat is lost through 1 square metre of material when there’s a one-degree temperature difference between inside and outside.
For example, a wall with a U‑value of 0.30 W/m²·K means that 0.30 watts of heat escapes through each square metre of wall for every degree of temperature difference. The smaller the number, the better the thermal performance.
Why Do U‑Values Matter in UK Homes?
Understanding U‑values is essential when it comes to energy efficiency. Poorly insulated homes lose heat quickly, which means higher heating bills, fluctuating indoor temperatures, and greater carbon emissions. Improving your U‑values helps tackle all of these issues.
Benefits of Lower U‑Values:
- Reduced energy bills, as your heating system works more efficiently.
- Consistent indoor comfort, with fewer cold spots and better temperature control year-round.
- Increased property value, thanks to better EPC ratings and long-term savings.
- Compliance with building regulations, particularly if you’re renovating or extending.
- A more sustainable home, with reduced heat loss and lower emissions.
With energy prices on the rise, more homeowners across the UK are exploring ways to make their homes more efficient. One of the most reliable solutions is to improve U-values through high-performance insulation systems such as external wall insulation (EWI).
What is the Difference Between U‑Value vs. R‑Value?
Both U-value and R-value relate to heat transfer through building materials, but they describe it in different ways.
- U-value measures how much heat flows through a material, the lower the number, the better the insulation.
- R-value shows how well a material resists heat flow, the higher the number, the better.
They are connected by a simple formula: R = 1 ÷ U
In the UK, U-values are the standard used in construction and insulation projects. So, if you’re looking to improve your home’s energy efficiency, focusing on U-values will give you the most relevant and practical insights.
UK Building Regulations and U‑Value Targets
UK building regulations set minimum energy efficiency standards for homes. These are laid out in Approved Document L, which deals with the conservation of fuel and power.
When it comes to external walls, current U‑value targets are:
- 0.30 W/m²·K for retrofit upgrades to existing properties
- 0.18–0.26 W/m²·K for new builds, depending on materials and design
Meeting or exceeding these targets helps keep homes warmer, cuts energy bills, and reduces environmental impact. If you’re considering adding external wall insulation, hitting a lower U‑value is one of the clearest ways to improve your property’s long-term energy performance.

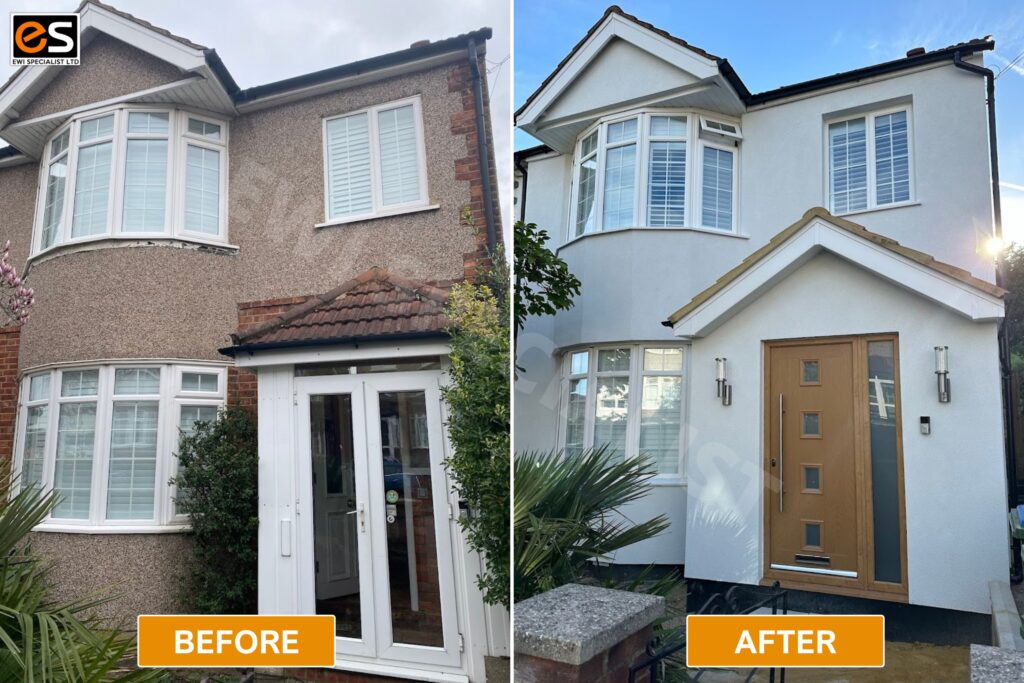

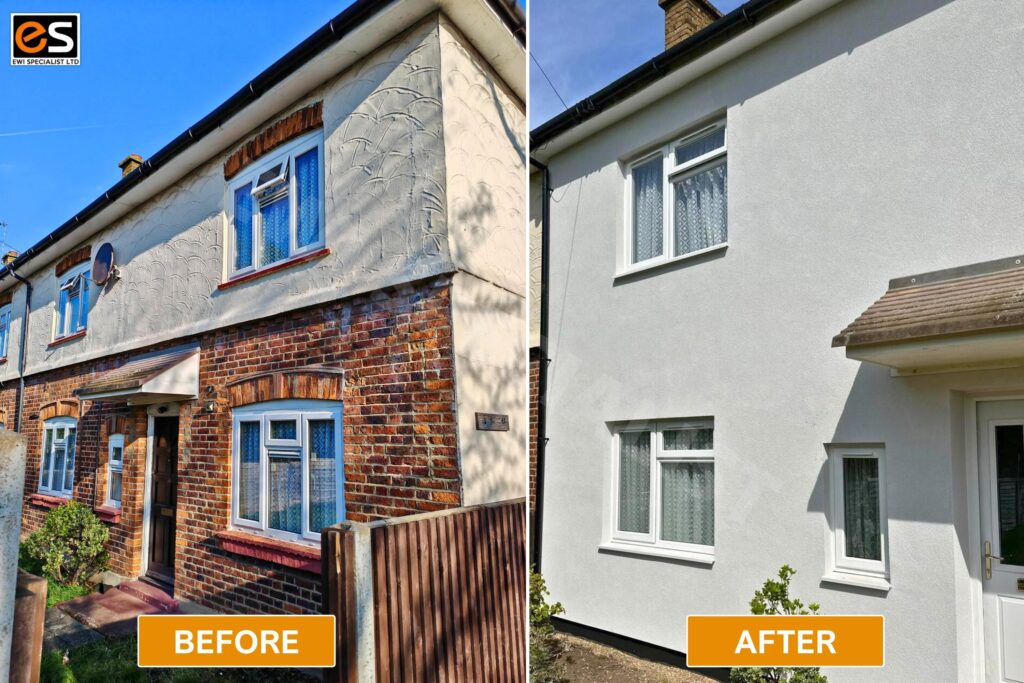

How External Wall Insulation Improves U‑Values
EWI is one of the most effective ways to reduce heat loss through your walls. The insulation layer wraps your home in a continuous protective shield. Once installed and rendered, it reduces the rate of heat transfer through the walls, resulting in significantly lower U-values.
Typical U‑Value Improvements
The results vary based on the type and thickness of insulation used. Here’s a quick breakdown of popular EWI materials and their thermal performance:
- EPS (Expanded Polystyrene) – 100 to 150 mm achieves around 0.30–0.21 W/m²·K.
- Mineral Wool (Rock Wool) – 120 to 160 mm reaches around 0.30–0.20 W/m²·K.
- Phenolic Foam (e.g. Kingspan K5) – Just 60 to 100 mm can deliver 0.22–0.18 W/m²·K.
- Woodfibre Boards (e.g. Warmshell) – 140 to 200 mm can achieve 0.30–0.20 W/m²·K.
In a typical UK home with uninsulated solid brick walls, the existing U-value might be 1.50 W/m²·K or higher. With EWI, that can be brought down to between 0.20 and 0.30 W/m²·K, depending on the system used and insulation thickness.
How Are U‑Values Calculated and Tested?
U-values aren’t just estimated, they’re calculated using approved software like SAP (Standard Assessment Procedure), which models the full build-up of your wall, including bricks, insulation, render, and any air gaps. It also considers thermal bridges around windows and doors.
For reliable results, a qualified energy assessor should carry out this calculation.
Practical Advice for UK Homeowners
If you’re considering EWI, a few key points can help you get the best results:
- Pick the right thickness. You don’t always need the thickest board, a typical UK home can achieve strong performance with 100-150 mm of EPS or 120-150 mm of mineral wool. Your installer should advise based on your property’s walls, layout, and goals.
- Choose a trusted installer. A poor installation can undo the benefits of good insulation. Always look for certified professionals with experience in EWI, ideally working to PAS 2035 standards or similar best practices.
- Know your targets. For retrofit projects, aim for a U-value of 0.30 W/m²K or better. New builds will usually need to go even lower to meet regulations.
- Ask for proper calculations. A professional U-value assessment using SAP or PHPP ensures you’re meeting performance standards, and not relying on guesswork.
Understanding U‑values isn’t just for architects or energy assessors; it’s valuable knowledge for any UK homeowner looking to cut heat loss, reduce energy bills, or meet modern building standards. Whether you’re renovating an older home or planning a new build, aiming for a lower U‑value can make a real difference to long-term comfort and efficiency.
EWI is one of the most effective ways to lower your U‑value, especially when combined with the right materials and professional installation.
